FLY-ERCF V2 Bootloader (Katapult) Recovery

For unbricking recovery only

The FLY-ERCF V2 is pre-flashed with Katapult at the factory. Do not re-flash the firmware on this page during normal use or when updating Klipper firmware; this page is only for unbricking recovery after the Bootloader is damaged.

Firmware Notes

Name Explanation

Katapult was formerly known as CanBoot, and both names may appear simultaneously in older tutorials or firmware names.

Katapult is a bootloader used to boot and update Klipper:

• Katapult itself cannot be used as a Klipper MCU; after flashing, you still need to write Klipper firmware that matches the hardware and communication method.
• Supported tool boards can enter Katapult by quickly double-pressing the RESET button; after entering, there is usually a status light blinking.
• CAN, RS232, and USB use independent Katapult firmware; you cannot simply modify file names or mix them directly.
• For CAN firmware, you must also select the correct bus speed, with common speeds being 500K and 1M.

• FLY-ERCF V2 supports CAN, RS232, and USB communication.
• This page provides Katapult firmware for both 500K and 1M CAN bus speeds.

CAN Bus Speed Must Match

Select only one firmware that matches your actual CAN bus speed. The host, mainboard, and all CAN devices on the same bus must use the same speed.

Entering Bootloader Mode

Power Off First

Before starting, completely turn off the printer and disconnect the power supply. Do not plug or unplug wiring harnesses, organize interface cabling, or touch terminals while powered on.

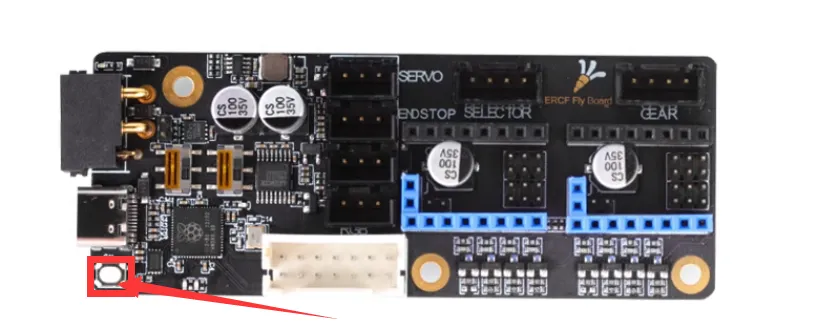

BOOT button is indicated in the image:

1. Keep the toolboard completely powered off.
2. Press and hold the BOOT button.
3. Connect the toolboard to your computer or host using a Type-C cable that supports data transfer.
4. Release the BOOT button once the device is detected.

Loading...

Flashing Firmware

• Windows
• Linux / FLYOS

1. Confirm that the device has entered UF2 flashing mode, and a removable disk named RPI-RP2 appears on the computer.

Loading...

2. Release the BOOT button or remove the BOOT jumper.

Windows file extension display

Windows may hide file extensions. Please check "File name extensions" in File Explorer, and confirm that you are using .uf2 firmware; do not modify the firmware extension.

3. Download the Flash erase firmware:

• nuke_universal.uf2

Windows 默认可能隐藏文件扩展名。下载后请确认文件扩展名未被修改，不要保存成 .txt 或其他扩展名。

The directory of the erase firmware in the repository is:

FLY-Firmware/RP2040

4. Copy nuke_universal.uf2 to the RPI-RP2 disk to erase the old firmware already present on the device.

5. After the copy is complete, the RPI-RP2 disk will automatically disappear; after the device erases the Flash, it will appear again as an RPI-RP2 USB drive, and at this point the Flash is already empty.

6. Download the FLY-ERCF V2 Katapult firmware:

• FLY_ERCFV2_CANBOOT_CAN_500K.uf2
• FLY_ERCFV2_CANBOOT_CAN_1M.uf2

Windows 默认可能隐藏文件扩展名。下载后请确认文件扩展名未被修改，不要保存成 .txt 或其他扩展名。

The firmware directory in the repository is:

FLY-Firmware/ToolBoard/ERCF

7. Copy the Katapult .uf2 firmware to the newly appeared RPI-RP2 disk.

Loading...

8. After the firmware is written, the RPI-RP2 disk will automatically disappear, indicating that Katapult has been flashed successfully.

1. Compile the RP2040 flashing tool. Skip this step if it has already been executed.

cd ~/klipper/lib/rp2040_flash/
make

2. Confirm that the device has entered UF2 flashing mode.

lsusb

If 2e8a:0003 appears in the output, it indicates that the device has entered RP2040 flashing mode. The device name displayed may differ across systems; the USB ID should be used as the reference.

Loading...

Device not recognized

Do not continue flashing if 2e8a:0003 does not appear. Please disconnect the device power again and repeat the steps in "Entering flashing mode" on this page.

3. Pull or update the precompiled firmware repository.

• Linux
• FLYOS

First-time download:

cd ~
git clone https://cnb.cool/3dmellow/FLY-Firmware.git

Update the repository if it has already been downloaded:

git -C ~/FLY-Firmware pull --ff-only

First-time download:

git clone https://cnb.cool/3dmellow/FLY-Firmware.git /data/FLY-Firmware
ln -s /data/FLY-Firmware /root/FLY-Firmware

Update the repository if it has already been downloaded:

git -C /data/FLY-Firmware pull --ff-only

4. Flash the erase Flash firmware to clear the old firmware already present on the device:

sudo ~/klipper/lib/rp2040_flash/rp2040_flash ~/FLY-Firmware/RP2040/nuke_universal.uf2

After the command finishes, the device will automatically restart and return to BOOTSEL / UF2 mode. lsusb will show 2e8a:0003 again, and at this point the Flash is already empty.

5. Depending on the CAN rate, execute only one of the following flashing commands:

CAN 500K:

sudo ~/klipper/lib/rp2040_flash/rp2040_flash ~/FLY-Firmware/ToolBoard/ERCF/FLY_ERCFV2_CANBOOT_CAN_500K.uf2

CAN 1M:

sudo ~/klipper/lib/rp2040_flash/rp2040_flash ~/FLY-Firmware/ToolBoard/ERCF/FLY_ERCFV2_CANBOOT_CAN_1M.uf2

6. After the flashing success message appears, proceed with the power-off operation.

Loading...

Flash Complete

Power Off First

After flashing is complete, disconnect the toolboard USB and external power before restoring normal wiring. Do not plug or unplug toolboard cables while powered on.

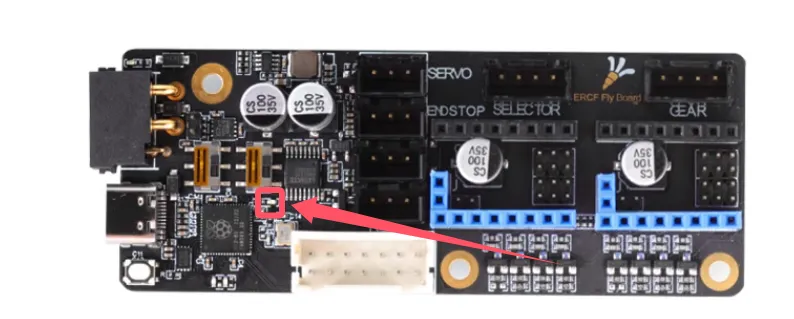

After powering on again, the status LED will blink when Katapult starts normally:

Loading...
