FLY-D7 Mainboard Introduction

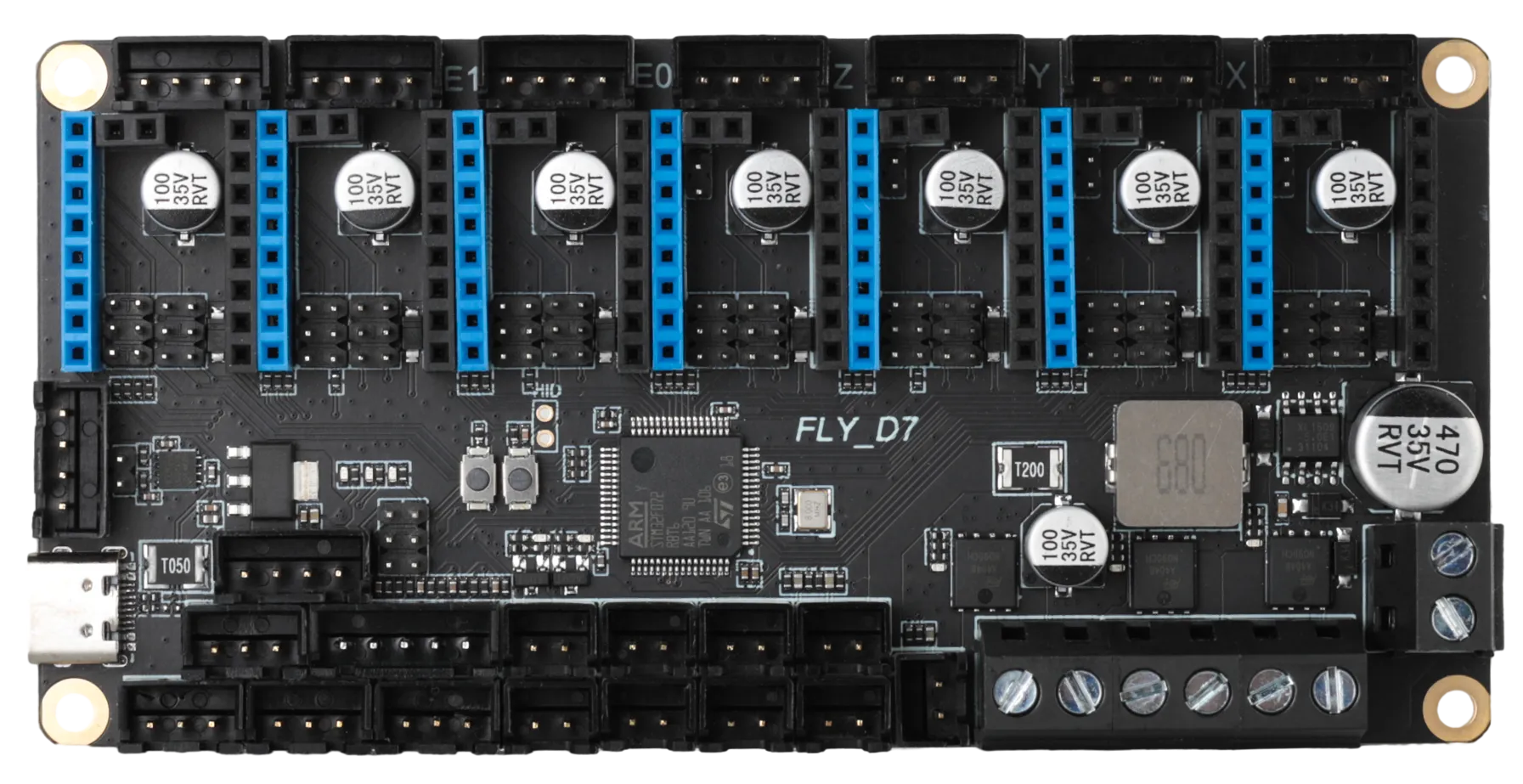

The Mellow Fly-D7 is a high-performance 3D printer mainboard developed by the Fly3D mainboard R&D team of Guangzhou Mellow Electronic Technology Co., Ltd. It supports up to 7 stepper motors.

Loading...
Important Notes
  1. Firmware Support: This mainboard supports Klipper and Marlin firmware. If using Klipper firmware, it needs to be used with a host computer.
  2. Power Supply Note: The D7 mainboard does not support reverse powering the host computer through its interfaces.

Product Features​

  • Main Control Chip: Uses the STM32F072RBT6 chip based on the 32-bit ARM Cortex-M0+ architecture, with a main frequency of 48MHz.
  • Communication Bus: Supports CAN bus connection, offering advantages such as stable data transmission, low latency, and reliable connections.
  • Driver Compatibility: Supports various stepper motor drivers including A4988, LV8729, DRV8225, TMC2208/2209/5160, and more.
  • Smart Limit: Onboard DIAG function pins, allowing easy implementation of sensor homing without physical limit switches via jumper caps.
  • Rich Interfaces: Provides various expansion interfaces such as BLTouch (servo and probe) and LCD screens.
  • Flexible Power Supply: Supports 12-24V wide voltage DC input, ensuring stable power supply and eliminating the need for additional step-down modules.

Product Parameters​

  • MCU: STM32F072RBT6
  • Firmware: Klipper/Marlin
  • Supports 12-24V DC power supply for more stable power, eliminating step-down modules
  • Driver Operating Mode Support: SPI, UART, STEP/DIR
  • Supported Drivers: Supports external TMC5160Pro, TMC5160, TMC2209, TMC2225, TMC2226, TMC2208, TMC2130, A4988, etc.
  • Expansion Interfaces: BLTouch (Servos, Probe), UART X1
  • Heating Interfaces: 3 controllable interfaces supporting 10A
  • Fan Interfaces:
    • 2 controllable two-wire fans
    • 2 parallel fan interfaces
    • 2 always-on fan interfaces
  • Supported Machine Structures: Cartesian, Delta, Kossel, Ultimaker, CoreXY, etc.

Electrical Specifications (Maximum Continuous Current)​

Output PortMax Current at 24V Power SupplyMax Current at 12V Power Supply
Heater Cartridge Port6A3A
Fan Port1A0.5A
  • Please ensure the power supply voltage and current meet the above requirements to avoid overload.
  • Before connecting the power supply, double-check the polarity to prevent reverse connection.
